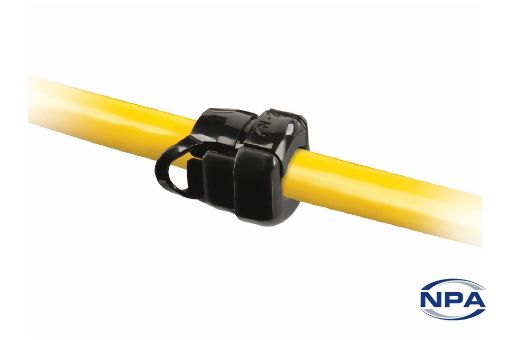

Strain Relief Bushing Straight-Thru - For Round Cables Black

Product Code: 1217

Manufacturer: Heyco

UOM: EACH

Round cable bushings to reduce strain through holes. Fit SJ, SJT & SJO cables measuring AWG 18/2 (7.6mm). To fill an unneeded hole later refer to product 2497.

Download Datasheet

Products specifications

Description	Strain Relief Bushing
Type	Straight-Thru - For Round Cables
Colour	Black
Material	Nylon 66
Length	14.7mm
Mounting Hole Diameter	15.9mm
Panel Thickness	1.6mm
Cable Size mm	7.6mm
Cable Size AWG	18
Flammability Rating	94V-2
Other information	Round Cable
