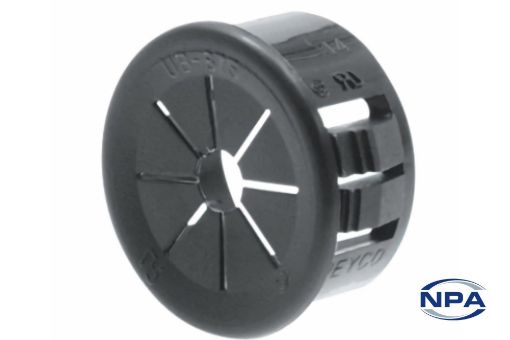

Bushing Universal Black

Product Code: 2184

Manufacturer: Heyco

UOM: EACH

Universal bushings feature flexible shutters adjust to accommodate and support any shape. Absorb vibration; cushion and insulate cables, tubing, hoses or shafts.

Download Datasheet

Products specifications

Description	Bushing
Type	Universal
Colour	Black
Material	Nylon 66
Height	11.5mm
Diameter	37.8mm
Mounting Hole Diameter	34.9mm
Internal Hole Diameter	25.4mm
Panel Thickness	3.2mm
Minimum Temperature	-18°C
Maximum Temperature	105°C
Flammability Rating	94V-2
Certifications	UL, CSA
