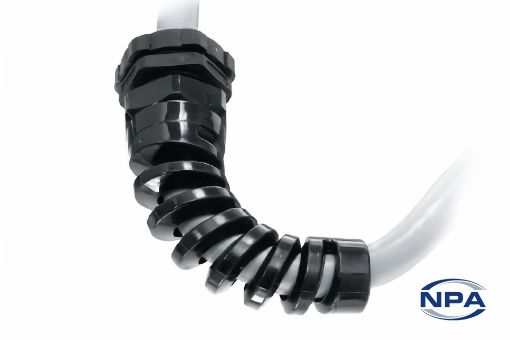

Cable Gland Pigtail Black

Product Code: 3240

Manufacturer: Heyco

UOM: EACH

PG-9 threaded pigtail cable glands prevent sharp bends on cables while maintaining a liquid tight seal. Rated IP 68. Fit 4.6mm to 7.9mm cables in diameter.

Download Datasheet

Products specifications

Description	Cable Gland
Type	Pigtail
Colour	Black
Material	Nylon 66
Length	70.4mm
Width	19.1mm
Internal Hole Diameter	15.2mm
Thread Length	8.6mm
Cable Size Minimum	4.6mm
Cable Size Maximum	7.9mm
IP Rating	IP 68
Minimum Temperature	-40°C
Maximum Temperature	115°C
Flammability Rating	94V-2
Certifications	UL, CSA
Other information	Includes Nylon Nut
