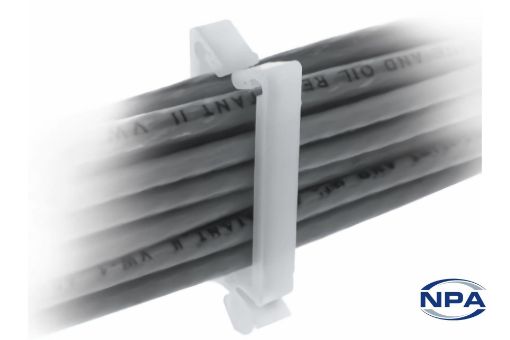

Cable Holder Latch Gate - Top Entry Natural

Product Code: 3625

Manufacturer: Heyco

UOM: EACH

Rectangular cable holders that uses a latch to secure cables and bundles. Mounts into 4.8mm PCB holes with panels up to 1.9mm thick. Fits cables and bundles up to 11.1mm x 8.4mm.

Download Datasheet

Products specifications

Description	Cable Holder
Type	Latch Gate - Top Entry
Colour	Natural
Material	Nylon 66
Length	15.5mm
Width	5.6mm
Height	18.3mm
Cable Size mm	11.1 x 8.4mm
Mounting Type	Arrowhead Mount
Minimum Temperature	0°C
Maximum Temperature	85°C
Flammability Rating	94V-2
Certifications	UL

Customers who bought this item also bought

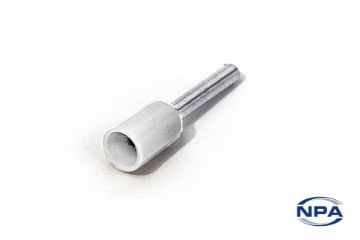

Ferrule Single Wire White

Product Code: 30350

UOM: EACH

Length: 14mm

Diameter: 1mm

0.5mm² insulated bootlace ferrules. Protect stranded cables in screw connectors and terminal blocks.

to purchase this item

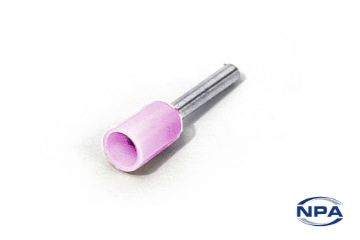

Ferrule Single Wire Violet

Product Code: 30348

UOM: EACH

Length: 10mm

Diameter: 0.75mm

0.25mm² insulated bootlace ferrules. Protect stranded cables in screw connectors and terminal blocks.

to purchase this item

Cable Holder Regular Gate - Top Entry Natural

Product Code: 3605

UOM: EACH

Length: 15.5mm

Width: 5.6mm

Height: 18.2mm

Mounting Hole Diameter: 4.8mm

Rectangular cable holders that uses tension to secure cables and bundles. Mounts into 4.8mm PCB holes with panels up to 1.9mm thick. Fits cables and bundles up to 11.1mm x 9.7mm.

to purchase this item

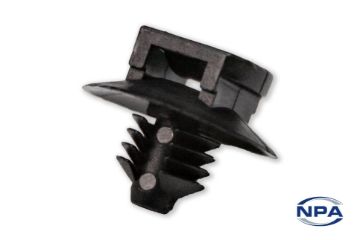

Cable Tie Mount Push Mount Black
