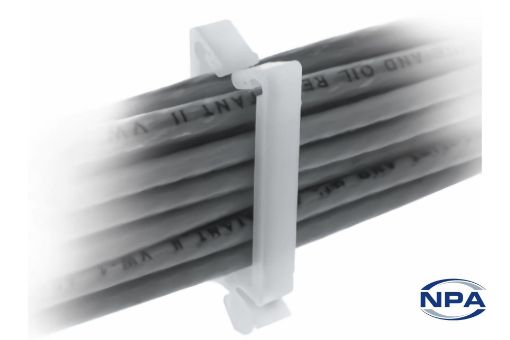

Picture of Cable Holder Regular Gate - Top Entry Natural

Cable Holder Regular Gate - Top Entry Natural

Product Code: 3605
Manufacturer: Heyco
UOM: EACH
Rectangular cable holders that uses tension to secure cables and bundles. Mounts into 4.8mm PCB holes with panels up to 1.9mm thick. Fits cables and bundles up to 11.1mm x 9.7mm.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionCable Holder
TypeRegular Gate - Top Entry
ColourNatural
MaterialNylon 66
Length15.5mm
Width5.6mm
Height18.2mm
Mounting Hole Diameter4.8mm
Cable Size mm11.1 x 9.7mm
Mounting TypeArrowhead Mount
Minimum Temperature0°C
Maximum Temperature85°C
Flammability Rating94V-2
CertificationsUL
