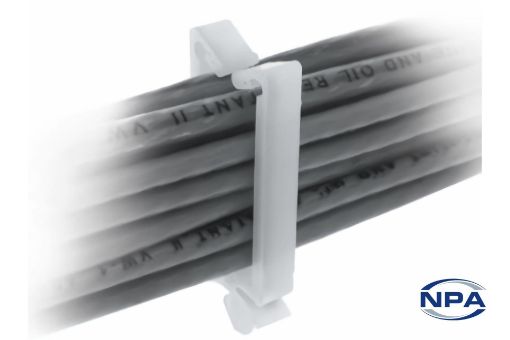

Cable Holder Regular Gate - Top Entry Natural

Product Code: 3615

Manufacturer: Heyco

UOM: EACH

Rectangular cable holders that uses tension to secure cables and bundles. Mounts into 4.8mm PCB holes with panels up to 1.9mm thick. Fits cables and bundles up to 11.1mm x 26.7mm.

Download Datasheet

Products specifications

Description	Cable Holder
Type	Regular Gate - Top Entry
Colour	Natural
Material	Nylon 66
Length	15.5mm
Width	5.6mm
Height	35mm
Mounting Hole Diameter	4.8mm
Cable Size mm	11.1 x 26.7mm
Mounting Type	Arrowhead Mount
Minimum Temperature	0°C
Maximum Temperature	85°C
Flammability Rating	94V-2
Certifications	UL
