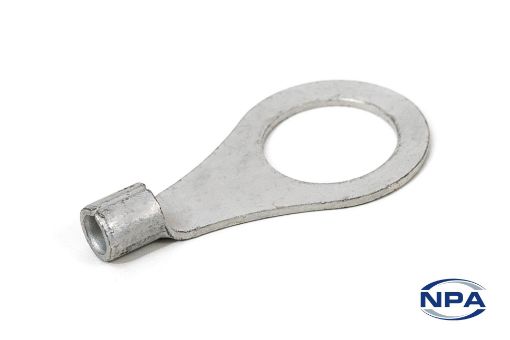

Crimp Connector Ring

Product Code: 30534

Manufacturer: NPA

UOM: EACH

Un-Insulated ring terminals easily attached with our readliy available crimping tools (see part no 23001). Fit cables from 0.5mm² to 1.5mm² and #8 imperial screws.

Download Datasheet

Products specifications

Description	Crimp Connector
Type	Ring
Material	Copper Tin Plate
Screw Size	4mm
Insulation Type	Non-Insulated
Cable Size AWG	22 - 16
Cable Size Minimum	.5mm²
Cable Size Maximum	1.5mm²
