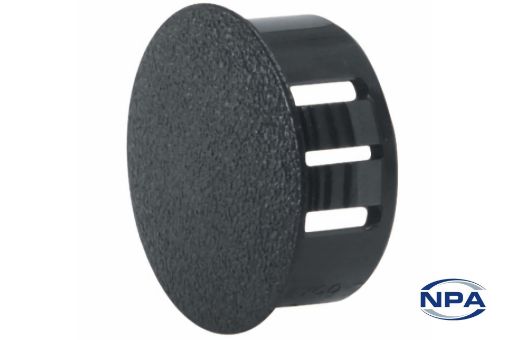

Picture of Hole Plug Dome Black

Hole Plug Dome Black

Product Code: 2763
Manufacturer: Heyco
UOM: EACH
Dome shaped convex hole plug for unneeded holes 38.1mm in diameter. Fits panels up to 3.2mm thick.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionHole Plug
TypeDome
ColourBlack
MaterialNylon 66
Height11.5mm
Diameter42.4mm
Mounting Hole Diameter38.1mm
Panel Thickness3.2mm
Minimum Temperature-40°C
Maximum Temperature105°C
Flammability Rating94V-2
CertificationsUL, CSA
