Picture of Rivet Cinching Natural

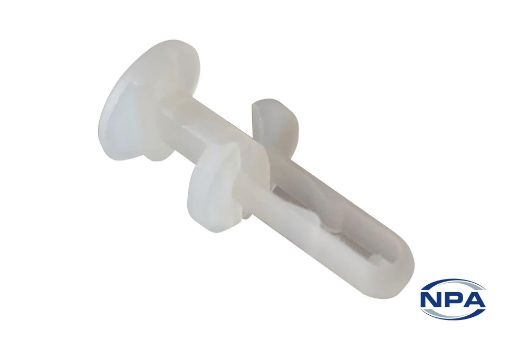

Rivet Cinching Natural

Product Code: 27CINCH04
Manufacturer: Microplastics
UOM: EACH
These one-piece molded nylon panel cinching rivets consist of two elements, the "T" shaped drive pin an "U" shaped body which are joined by thin webs. To install the fastener, insert the "U" shaped body into the panel hole and tap the head of the "T" shaped pin with a hammer or impact tool.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionRivet
TypeCinching
ColourNatural
MaterialNylon 66
Length14.1mm
Height2.97mm
Diameter15.88mm
Mounting Hole Diameter6.35mm
Panel Thickness0.51mm - 4.42mm
Minimum Temperature-40°C
Maximum Temperature85°C
Flammability Rating94V-2
CertificationsUL
