Picture of Tube Fitting Snap-In Hub Black

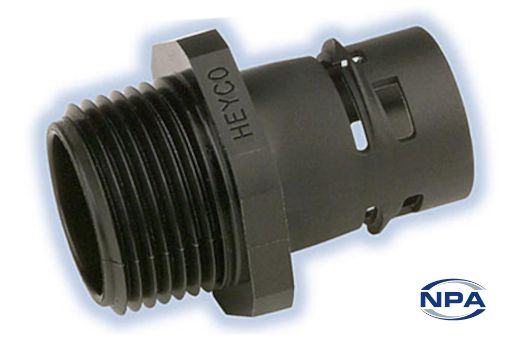

Tube Fitting Snap-In Hub Black

Product Code: 9140
Manufacturer: Heyco
UOM: EACH
Hubs to equip Heyco-Flex III tubing with a snap-in fitting. Designed to fit a trade size of 1/4". Locknut is not included.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionTube Fitting
TypeSnap-In Hub
ColourBlack
MaterialNylon 66
Length39.1mm
Width19.1mm
Mounting Hole Diameter12.5mm
Thread Length11.4mm
Thread PitchNPT ¼"
Mounting TypeStraight-Thru
Minimum Temperature-30°C
Maximum Temperature100°C
Flammability Rating94V-0
CertificationsUL
