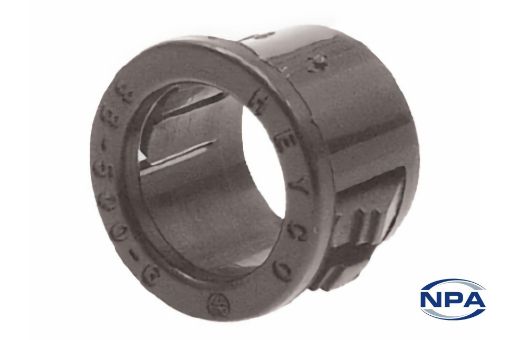

Bushing Snap Black

Product Code: 2096

Manufacturer: Heyco

UOM: EACH

Bushings to smooth rough edged holes and provide insulation for cables passing through. Withstand a push back force of 35 lbs. (16kg).

Download Datasheet

Products specifications

Description	Bushing
Type	Snap
Colour	Black
Material	Nylon 66
Height	10.3mm
Diameter	21.6mm
Mounting Hole Diameter	19.1mm
Internal Hole Diameter	15.5mm
Panel Thickness	3.2mm
Flammability Rating	94V-2
