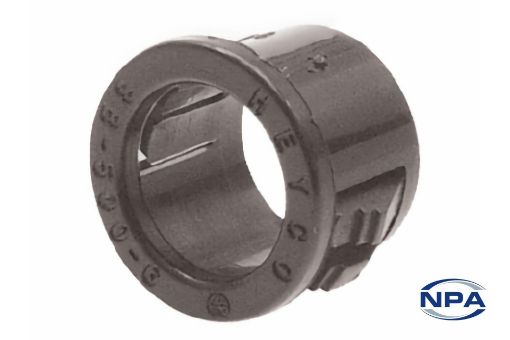

Bushing Snap Black

Product Code: 2420

Manufacturer: Heyco

UOM: EACH

Easily fitted snap bushings smooth and insulated rough holes to reduce wear and tear on cables. Withstand a push back force of 35 lbs. (16kg).

Download Datasheet

Products specifications

Description	Bushing
Type	Snap
Colour	Black
Material	Nylon 66
Height	8.3mm
Diameter	67.5mm
Mounting Hole Diameter	63.5mm
Internal Hole Diameter	50mm
Panel Thickness	6.4mm
Minimum Temperature	-18°C
Maximum Temperature	105°C
Flammability Rating	94V-2
Certifications	UL, CSA
