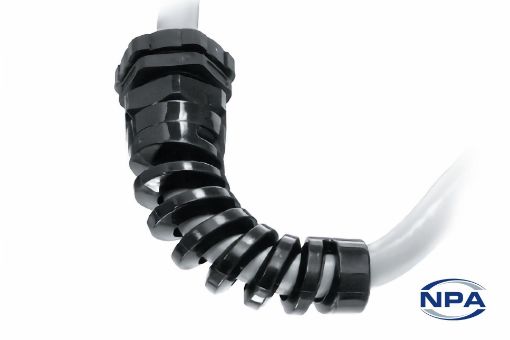

Cable Gland Liquid Tight Black

Product Code: 4786

Manufacturer: Heyco

UOM: EACH

PG-11 threaded pigtail cable glands prevent sharp bends on cables while maintaining a liquid tight seal. Rated IP 68. Fit 5.8mm to 10mm cables in diameter. Nut is not included.

Download Datasheet

Products specifications

Description	Cable Gland
Type	Liquid Tight
Colour	Black
Material	Nylon 66
Length	87.4mm
Width	21.8mm
Mounting Hole Diameter	18.6mm
Thread Length	9.9mm
Cable Size Minimum	5.8mm
Cable Size Maximum	10mm
IP Rating	IP 68
Minimum Temperature	-40°C
Maximum Temperature	115°C
Flammability Rating	94V-2
Certifications	UL, CSA
Other information	No Nut
