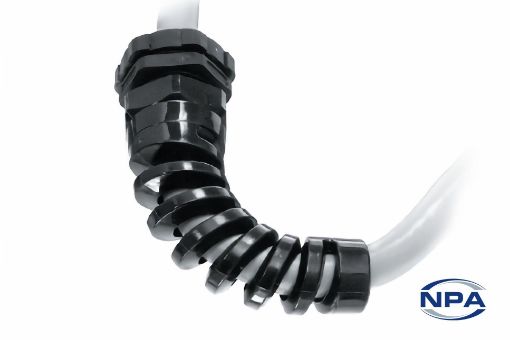

Picture of Cable Gland Liquid Tight Black

Cable Gland Liquid Tight Black

Product Code: 4792
Manufacturer: Heyco
UOM: EACH
PG-16 threaded pigtail cable glands prevent sharp bends on cables while maintaining a liquid tight seal. Rated IP 68. Fit 5.8mm to 13.9mm cables in diameter. Nut is not included.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionCable Gland
TypeLiquid Tight
ColourBlack
MaterialNylon 66
Length110.7mm
Width26.7mm
Mounting Hole Diameter22.5mm
Thread Length11.4mm
Cable Size Minimum5.8mm
Cable Size Maximum13.9mm
IP RatingIP 68
Minimum Temperature-40°C
Maximum Temperature115°C
Flammability Rating94V-2
CertificationsUL, CSA
Other informationNo Nut
