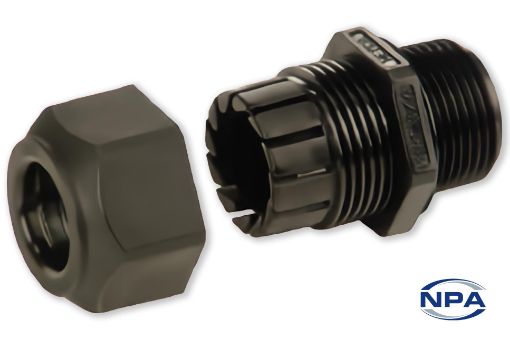

Picture of Cable Gland Straight-Thru Liquid Tight Black

Cable Gland Straight-Thru Liquid Tight Black

Product Code: M4340
Manufacturer: Heyco
UOM: EACH
M20 cable glands rated IP 68. For cables measuring 4.3mm to 11.4mm in diameter.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionCable Gland
TypeStraight-Thru Liquid Tight
ColourBlack
MaterialNylon 66 With TPE Sealing Gland
Length38.9mm
Width24.9mm
Mounting Hole Diameter20mm
Thread Length10.4mm
Thread PitchM20
Cable Size Minimum4.3mm
Cable Size Maximum11.4mm
IP RatingIP 68
Minimum Temperature-40°C
Maximum Temperature115°C
Flammability Rating94V-2
CertificationsUL, CSA
