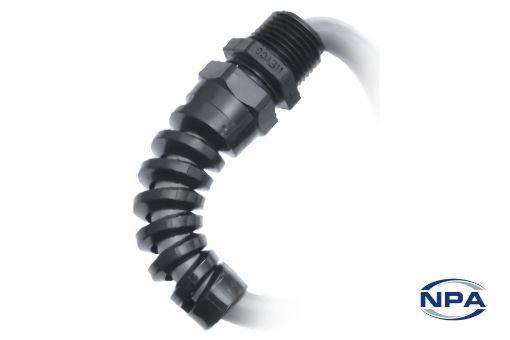

Cable Gland Pigtail Black

Product Code: 3239

Manufacturer: Heyco

UOM: EACH

3/4" NPT threaded pigtail cable glands prevent sharp bends on cables while maintaining a liquid tight seal. Rated IP 68. Fit 11.4mm to 18mm cables in diameter.

Download Datasheet

Products specifications

Description	Cable Gland
Type	Pigtail
Colour	Black
Material	Nylon 66
Length	130.6mm
Width	33mm
Internal Hole Diameter	27.1mm
Thread Length	16mm
Cable Size Minimum	11.4mm
Cable Size Maximum	18mm
IP Rating	IP 68
Minimum Temperature	-40°C
Maximum Temperature	115°C
Flammability Rating	94V-2
Certifications	UL, CSA
Other information	No Nut
